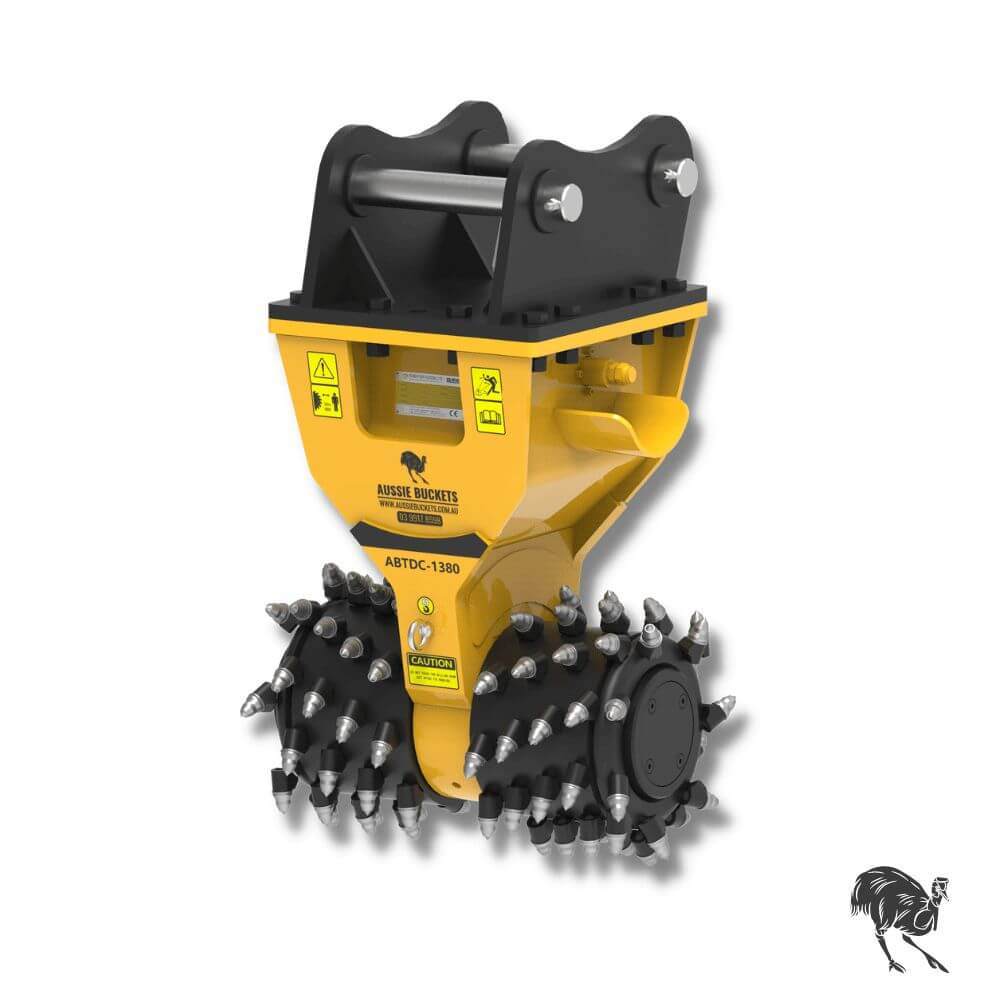

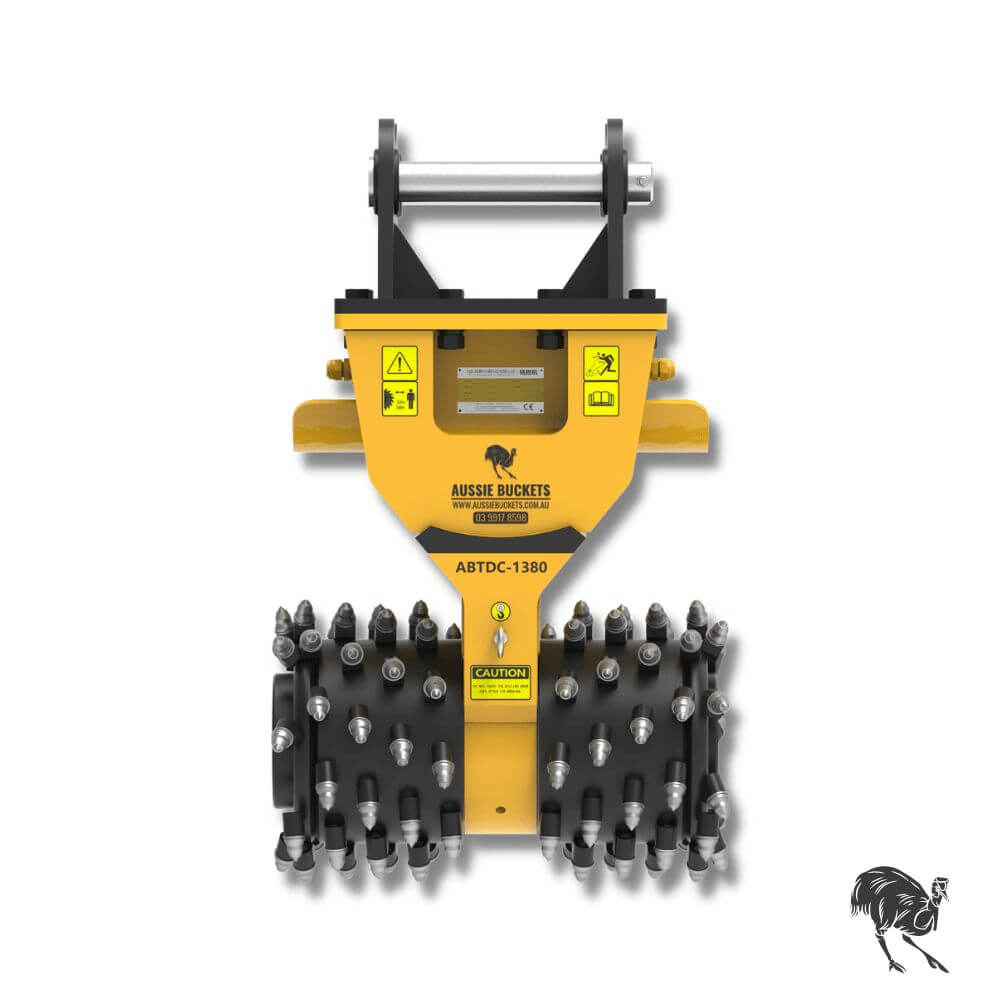

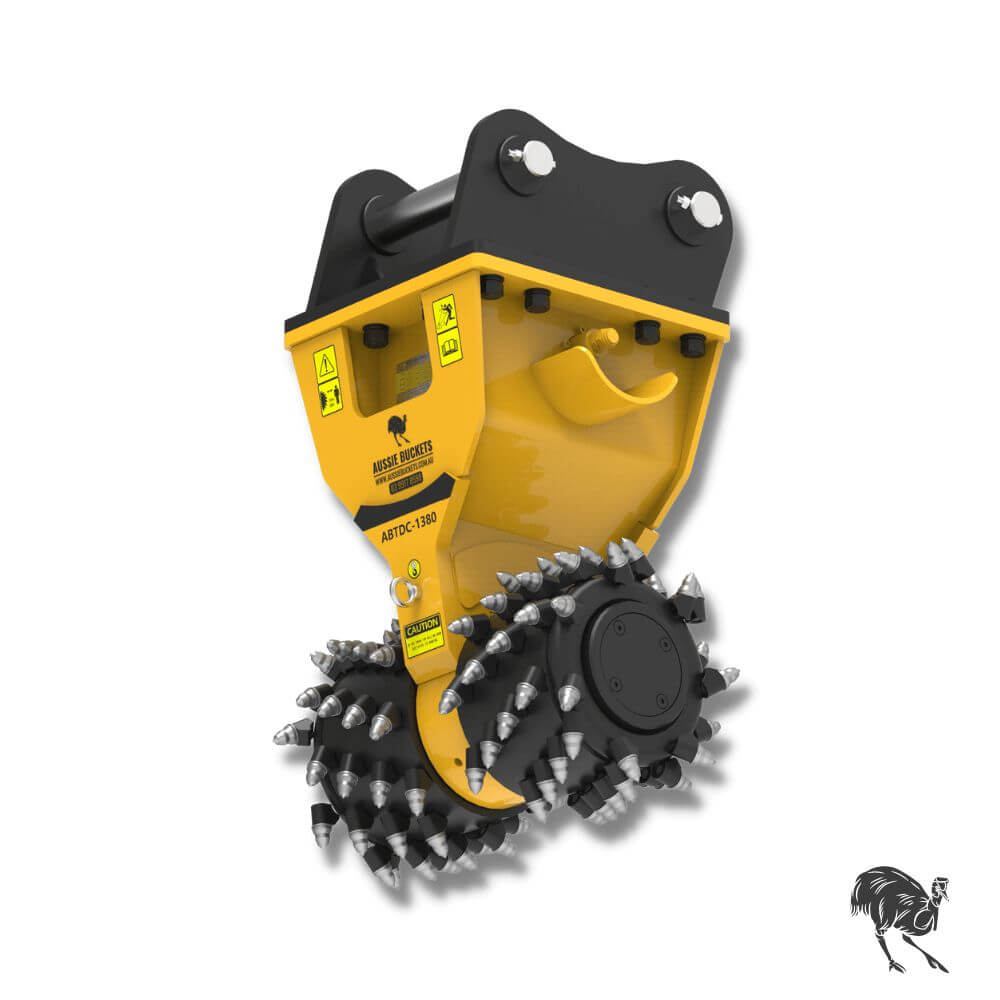

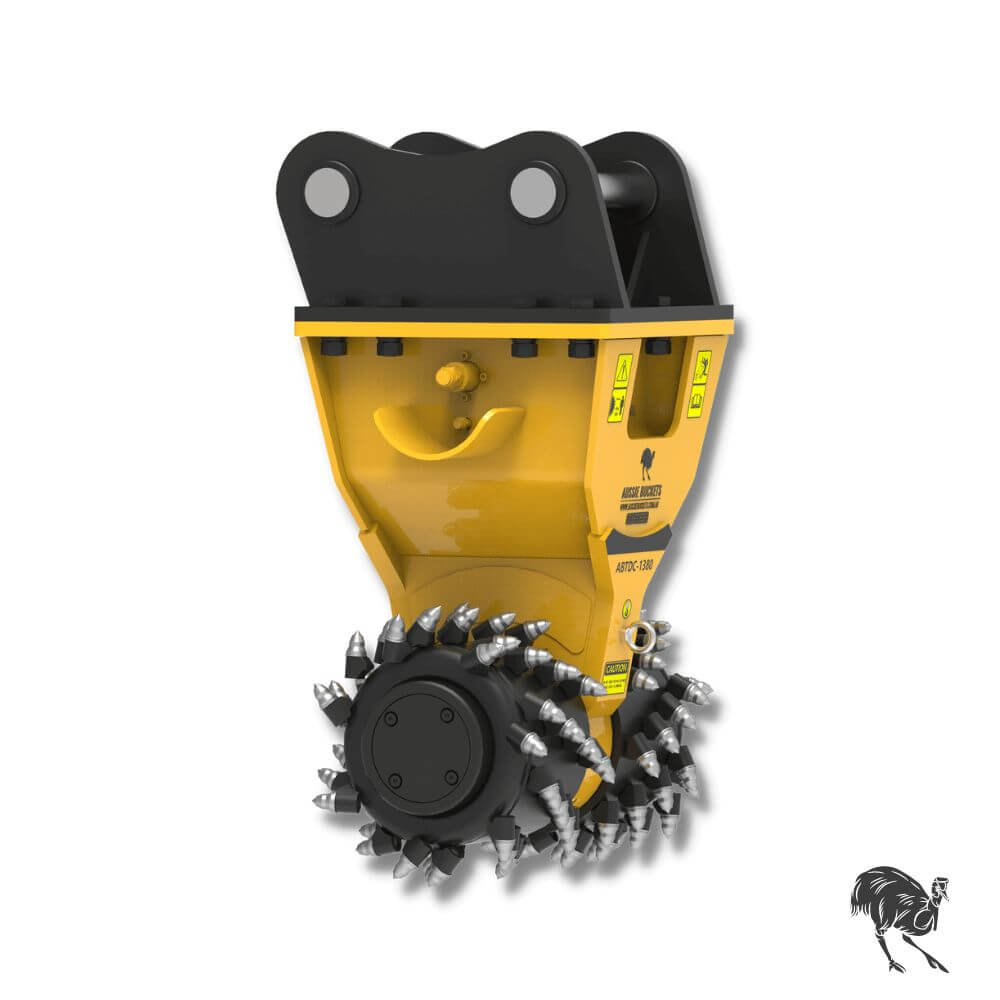

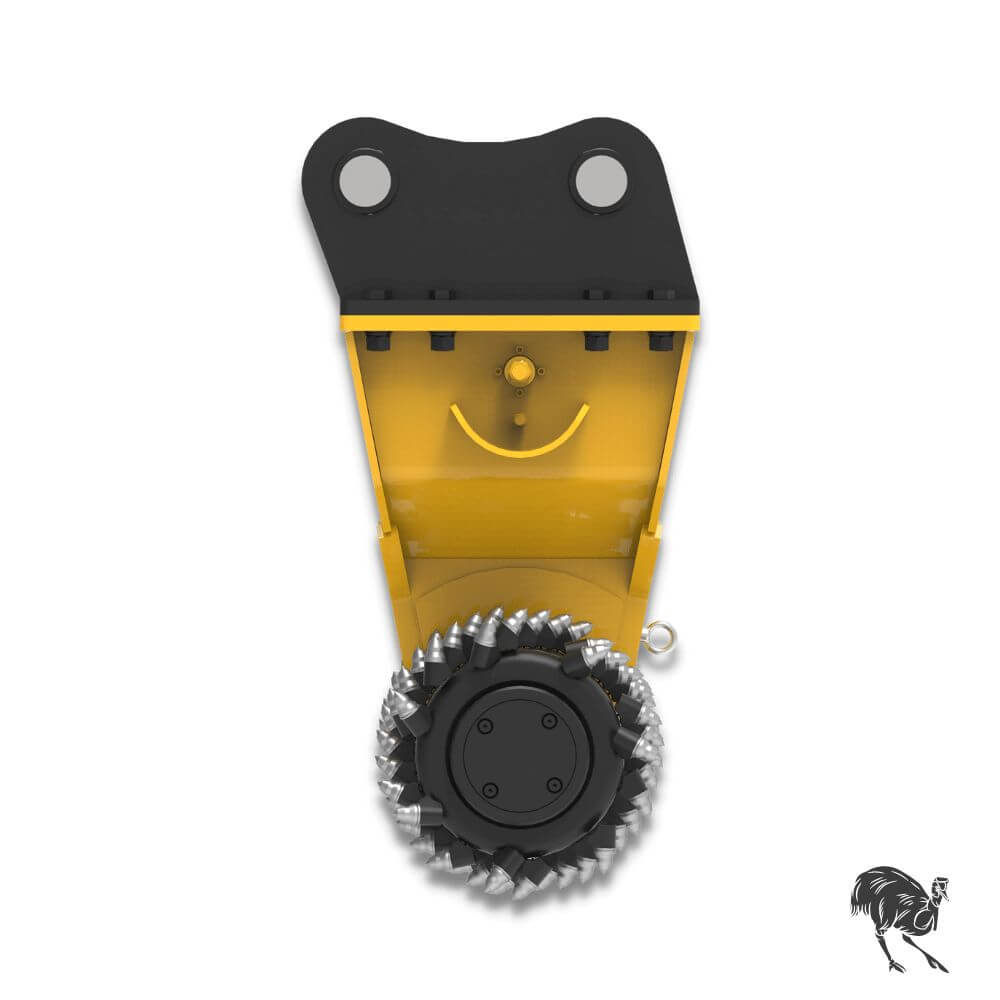

TRANSVERSE DRUM CUTTER
TRANSVERSE DRUM CUTTER
Available for 2.5t - 60t
The Transverse Drum Cutter is a beast to be reckoned with. This versatile attachment can be used across a vast range of applications. These include surface profiling, trenching, soft rock and frozen soil demolition, excavation, quarrying and underwater excavations. The Transverse Drum Cutter is an alternative to the Hydraulic Rock Breaker, offering less noise and vibration.
The Transverse Drum Cutter is a beast to be reckoned with. This versatile attachment can be used across a vast range of applications. These include surface profiling, trenching, soft rock and frozen soil demolition, excavation, quarrying and underwater excavations. The Transverse Drum Cutter is an alternative to the Hydraulic Rock Breaker, offering less noise and vibration.
QUARRIES
& MINES

DEMO-
LITION

TUNNELLING

TRENCHING

Twin Rotating Drums
High-Quality Materials
Low Noise & Vibration
Precise Control
Recycle Material
Simple Maintenance
Optional Dust Suppression System
Available as an add-on feature, this advanced system enhances the performance and safety of your operations by significantly reducing dust and airborne particulates during excavation tasks.
WARRANTY YOU CAN TRUST
VERSATILITY
Designed to be used across a wide range of applications such as surface profiling, trenching, soft rock and frozen soil demolition, excavation, quarrying, and underwater excavations. This versatility makes it a valuable tool for businesses in the construction, demolition, and mining sectors, as it can open businesses up to taking on new types of work.

PERFORMANCE
The twin rotating drums are fitted with picks ready to cut through anything standing in its path. This powerful feature allows the drum cutter to efficiently and effectively break through tough materials, such as rock and frozen soil, which is necessary for superior performance cutting.

No oscillation
The drum cutter is considered an alternative to the Hydraulic Rock Breaker, which is known to produce a significant amount of noise and vibration. The Drum Cutter offers a quieter alternative, as it utilises twin rotating drums which arew designed to be more efficient in down breaking materials, which results in less noise and vibration, making it an ideal option for use in areas with vibration and noise restrictions.

Specifications
-
2.5-6t
-
7-16t
-
12-18t
-
18-30t
-
25-40t
-
45-60t
-
2.5-6tNAMETRANSVERSE DRUM CUTTER (2.5-6t)TONNAGE2.5-6tMAX POWER22kWMAX FLOW RATE65L/minREC. FLOW RATE40-60L/minPRESSURE≤400barOUTPUT TORQUE1875Nm @ 320barOUTPUT SHAFT SPEED100rpm @ 50L/minWEIGHT215kgCUTTER PIECES56 PCSMore Info
-
7-16tNAMETRANSVERSE DRUM CUTTER (7-16t)TONNAGE7-16tMAX POWER45kWMAX FLOW RATE112L/minREC. FLOW RATE60-100L/minPRESSURE≤400barOUTPUT TORQUE3570Nm @ 320barOUTPUT SHAFT SPEED90rpm @ 80L/minWEIGHT275kgTitle56 PCSMore Info
-
12-18tNAMETRANSVERSE DRUM CUTTER (12-18t)TONNAGE12-18tMAX POWER70kWMAX FLOW RATE132L/minREC. FLOW RATE100-120L/minPRESSURE≤400barOUTPUT TORQUE6320Nm @ 320barOUTPUT SHAFT SPEED85rpm @ 120L/minWEIGHT595kgCUTTER PIECES64 PCSMore Info
-
18-30tNAMETRANSVERSE DRUM CUTTER (18-30t)TONNAGE18-30tMAX POWER90kWMAX FLOW RATE320L/minREC. FLOW RATE150-250L/minPRESSURE≤450barOUTPUT TORQUE17840Nm @ 320barOUTPUT SHAFT SPEED78rpm @ 220L/minWEIGHT1380kgCUTTER PIECES80 PCSMore Info
-
25-40tNAMETRANSVERSE DRUM CUTTER (25-40t)TONNAGE25-40tMAX POWER110kWMAX FLOW RATE460L/minREC. FLOW RATE250-400L/minPRESSURE≤450barOUTPUT TORQUE21376Nm @ 320barOUTPUT SHAFT SPEED76rpm @ 320L/minWEIGHT1400kgCUTTER PIECES60 PCSMore Info
-
45-60tNAMETRANSVERSE DRUM CUTTER (45-60t)TONNAGE45-60tMAX POWER140kWMAX FLOW RATE750L/minREC. FLOW RATE400-600L/minPRESSURE≤450barOUTPUT TORQUE33450Nm @ 320barOUTPUT SHAFT SPEED60rpm @ 500L/minWEIGHT2100kgCUTTER PIECES64 PCSMore Info
